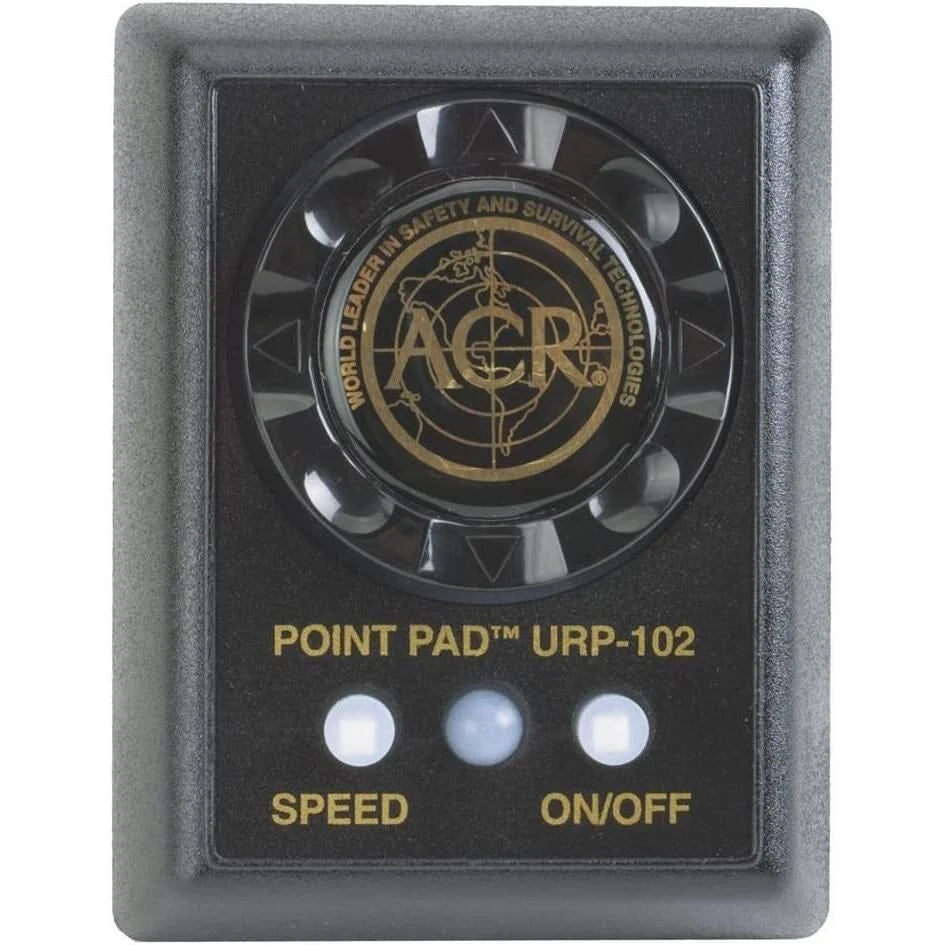

The ACR URP-102 Point Pad is the control panel for RCL-50, RCL-100, and RCL-300 searchlights. It allows you to control on/off, direction, elevation, rotation speed, and the XRCiZ function. Suitable for 12 and 24 volts.
The panel used to control your searchlight
The ACR URP-102 Point Pad is the control panel you mount at the helm. With your fingertips, you can control on/off, beam direction, elevation, rotation speed, and the XRCiZ maintenance function. This panel can be used with the RCL-50, RCL-100, and RCL-300 series.
Handy detail: the panel is supplied as a surface-mount unit, but a cover plate is included for flush mounting. This means you choose yourself whether the panel sits on your dashboard or sits flush within it, without ordering extra parts. A gasket is included. Please note one limitation that ACR explicitly mentions: the URP-102 does not work with the older URC-100 master controller.
Why choose the URP-102 Point Pad?
Everything at your fingertips: on/off, direction, elevation, speed, and XRCiZ
Surface or flush mount: cover plate for flush mounting included
Gasket included: for a waterproof seal in your dashboard
For multiple searchlight series: RCL-50, RCL-100, and RCL-300
12 or 24 volt: fits almost any onboard power system
Who is this product for?
Intended for vessels with an ACR searchlight that want an additional control station, for example, on the flybridge in addition to the interior helm, and for replacing a damaged panel. Installers also use this component for new builds or refits.
What are the benefits?
Operate from multiple locations: a second panel saves you from walking back and forth
Fits your dashboard as you wish: surface or flush, both are possible
Individually replaceable: no need for a completely new system in case of damage
Original part: made for this searchlight series
Technical specifications
Product type
Control panel for searchlight
Part number
1928.3
Model
URP-102 Point Pad
Suitable for
ACR RCL-50, RCL-100, and RCL-300 series
Controls
On and off, direction, elevation, rotation speed, and XRCiZ
Supply voltage
12 or 24 volt DC
Mounting
Surface mount, with included cover plate also flush mount
Included
Manual, cover plate, and gasket
Not included
Coaxial cable and connectors
Not compatible with
URC-100 master controller
Brand
ACR
Additional features
Important limitation
Does not work with the older URC-100 master controller
Cable length
Keep the total coaxial length limited to approximately 90 meters
Complete kit
Part number 9282.3 contains this panel plus splitter, connectors, and coaxial cable
Backward compatible
The URP-102 works with all RCL-50 and RCL-100 searchlights
Frequently asked questions
What exactly does a Point Pad do?
A Point Pad is the control panel at your helm. It allows you to turn the searchlight on and off, rotate and tilt the beam, select the rotation speed, and engage the XRCiZ maintenance function.
What is the difference between a Point Pad and a master controller?
The master controller is the box that manages power and control, which is mounted out of sight. The Point Pad is the control panel you physically operate. You need both.
Can I connect multiple control points?
Yes. Multiple Point Pads can be connected to the same master controller via coaxial cable. Keep the total coaxial length limited to approximately 90 meters.
Does this work on 12 or 24 volts?
On both. The URP-102 Point Pad works on 12 or 24 volt DC, which fits almost any onboard power system.
Can I mount this panel flush?
Yes. The panel is supplied as a surface-mount unit, but a cover plate is included for flush mounting. A gasket is also included.
