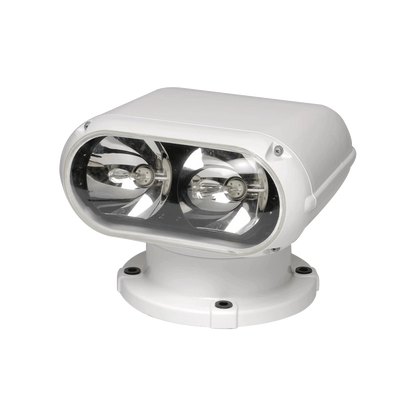

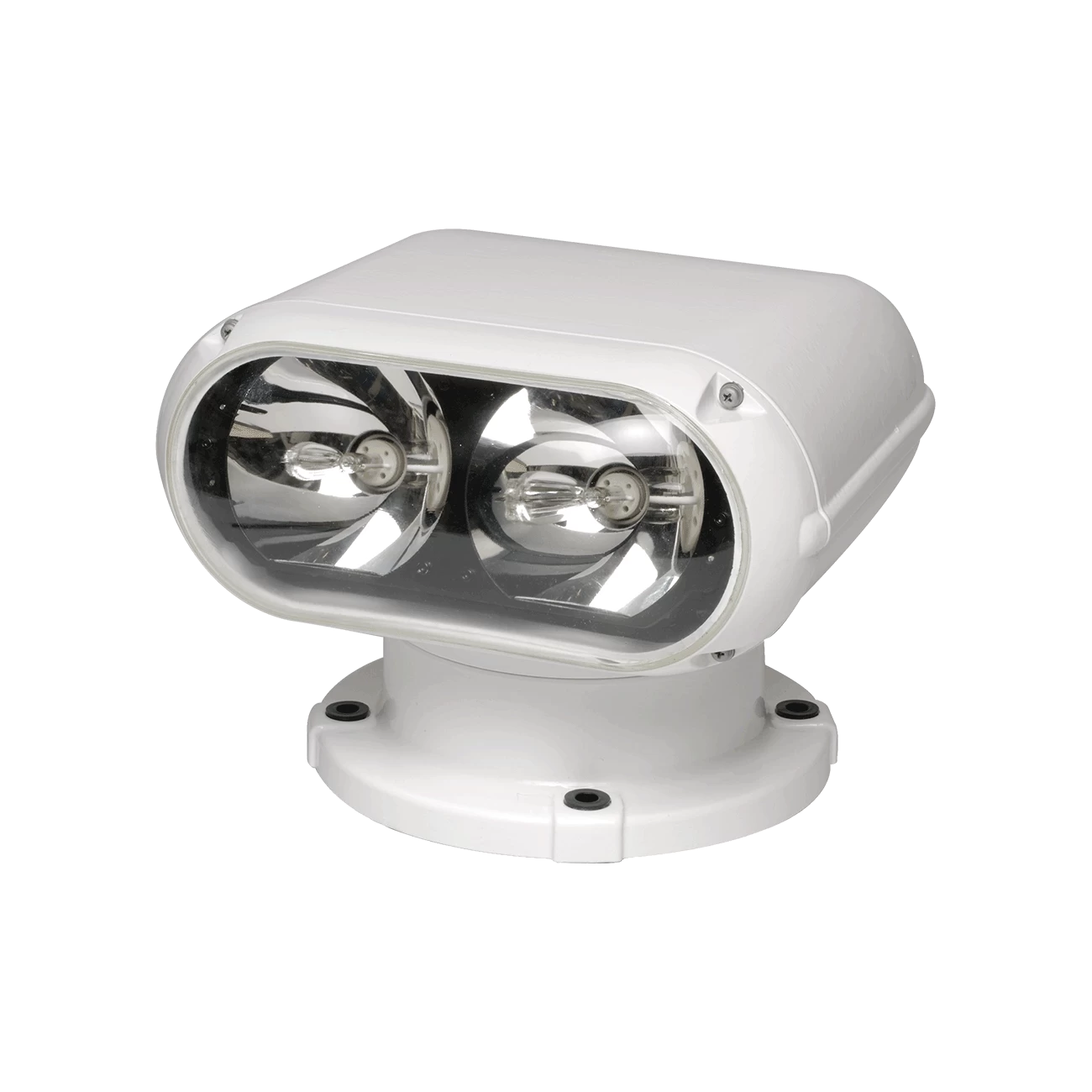

The ACR RCL-300A is a remote-controlled HID searchlight, or marine searchlight, of 1,000,000 candela for large yachts and commercial vessels. Two 35-watt metal halide lamps provide a narrow beam. Supplied with URP-102 Point Pad and URC-300 master controller.
One million candela in a narrow beam, for those who really need to see far
The ACR RCL-300A is a searchlight in a different league than the LED models. Two 35-watt metal halide lamps together produce one million candela in a deliberately narrow beam. That focus is the point: the narrower the beam, the further the light carries.
The RCL-300A is designed to increase safety during nighttime operations. That sounds general, but it refers to work where you need to be able to distinguish an object at a distance: a person overboard, a buoy, an obstacle in the waterway, or a quay you are approaching in the dark. For that kind of work, range is more important than a wide illuminated area.

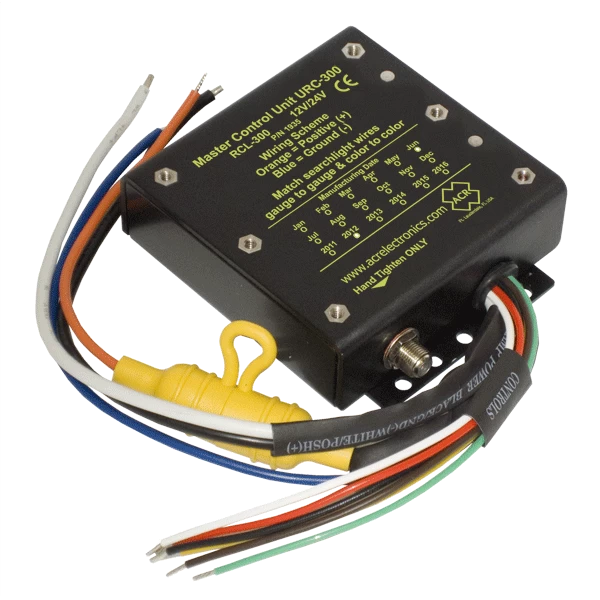

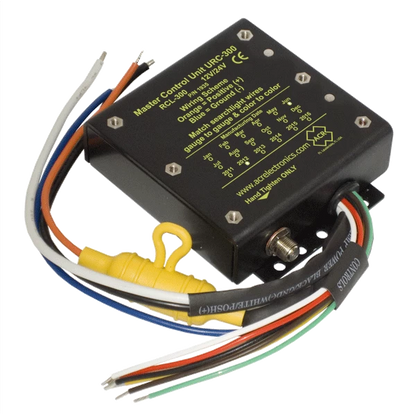

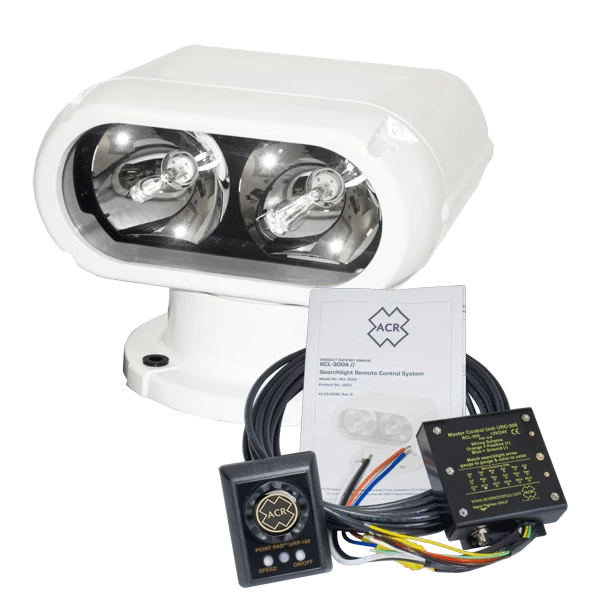

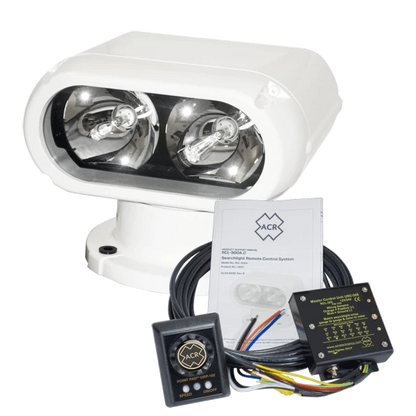

The light is supplied with the URP-102 Point Pad and the URC-300 master controller. These allow you to control on, off, pan, tilt, and rotation speed from your fixed station. The XRCiZ function in the controller automatically rotates the light a full circle in both directions every thirty days and moves the reflectors up and down, keeping the mechanism smooth even if you don't use the light for months.
Why choose the RCL-300A HID searchlight?
-
1,000,000 candela: two 35-watt metal halide lamps in a focused beam
-
Narrow beam: kept narrow on purpose, because that is what provides distance
-
Made for nighttime work: This light is designed to increase safety during night operations
-
Control included: URP-102 Point Pad and URC-300 master controller are included
-
XRCiZ self-maintenance: an automatic test cycle every thirty days to prevent seizing
Who is this product made for?
The RCL-300A is suitable for large sport yachts and mega yachts, as well as large sport fishing boats and commercial vessels. In practice, this applies to vessels where an LED searchlight falls short: pilot services, towing, fishing, emergency services, and large yachts that frequently sail at night. For smaller vessels, one of the LED models is usually the wiser choice, if only because of the power consumption.
What are the benefits for you?
-
You can see objects at great distances: the narrow beam carries further than a wide floodlight
-
Control from your fixed station: Point Pad and master controller are included in the delivery
-
Keeps running smoothly: XRCiZ automatically moves the mechanism, even during long periods of inactivity
-
Made for professional use: positioned by ACR for commercial vessels
Technical specifications
| Product type |
Remote-controlled HID searchlight |
| Article number |
1933 |
| Model |
RCL-300A |
| Light intensity |
1,000,000 candela |
| Light source |
Two 35-watt metal halide HID lamps |
| Beam type |
Narrow beam |
| Supply voltage |
12 or 24 volt DC |
| Control |
URP-102 Point Pad and URC-300 master controller, both included |
| Self-maintenance |
XRCiZ, automatic test cycle every 30 days |
| Rotation range XRCiZ cycle |
360 degrees in both directions |
| Brand |
ACR |
Additional features
| Why HID and not LED |
Metal halide provides a higher light intensity in this configuration than ACR's LED models |
| Enabling XRCiZ |
Hold the on-off button on the Point Pad for more than five seconds |
| Multiple control points |
Additional URP-102 Point Pads can be connected to the same system |
| Power consumption |
Considerably higher than with the LED models, keep this in mind for your battery bank |
| Alternative |
The RCL-600A with 6,000,000 candela if you need to be able to look even further |
Frequently asked questions
How does the RCL-300A compare to ACR's LED searchlights?
With 1,000,000 candela, the RCL-300A is more than twice as powerful as the RCL-95, the most powerful LED model in this series. The trade-off is that HID requires more power and lamps need to be replaced over time, whereas LEDs last for tens of thousands of hours.
Why a narrow beam?
Because light intensity and beam width work against each other. The narrower you keep the beam, the further the light carries. For recognizing an object at a distance, that is exactly what you want.
Is the control included?
Yes. The URP-102 Point Pad and the URC-300 master controller are included.
