Simrad NSS12 evo3S with Worldwide Basemap and HALO20+ Radar
Simrad NSS12 evo3S with Worldwide Basemap and HALO20+ Radar
SKU:000-15557-002
✅ Authorized dealer and marine specialist
✅ 2 year manufacturer warranty
✅ Not sure what fits? Contact us for advice
Couldn't load pickup availability

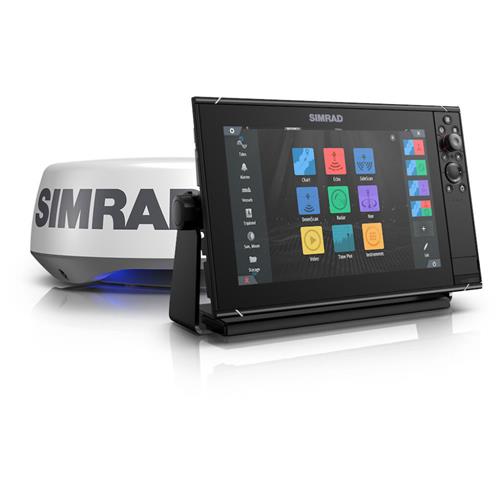

Simrad NSS12 evo3S with HALO20+ Radar
Complete package with multifunction display and pulse compression radar for full situational awareness.
This bundle package combines the Simrad NSS12 evo3S chartplotter with the HALO20+ radar, providing you with a complete navigation and radar solution in one order, with all components guaranteed compatible. The package forms a strong basis for sailing on larger waters where radar is essential for safety and orientation.
The NSS12 evo3S offers touch and button control on a bright SolarMAX IPS screen, while the HALO20+ radar provides Doppler detection and pulse compression technology for target discrimination at any range.
Why choose this NSS12+HALO20+ bundle?
- Complete starter package: chartplotter and radar in one order, ready to use.
- Doppler radar included: approaching targets in red, stationary objects in green.
- NSS12 evo3S with multi-touch: high-quality 12-inch screen with rotary knob for heavy seas.
- No warm-up time: solid-state radar ready to use immediately upon power-on.
- Full Simrad integration: Ethernet, NMEA 2000, Wi-Fi, and autopilot control.
Who is this product for?
This bundle is intended for sailboat and motorboat owners who want to install a high-quality navigation and radar system all at once. Suitable for new installations, refit projects, and upgrades where the main components are replaced together. Ideal for sailing at sea, in foggy areas, or during night trips.
What does it offer you?
- Safer sailing: immediate identification of approaching vessels and coastlines via Doppler.
- Complete package advantage: all main components in one order.
- Quick to deploy: ready to use immediately without radar warm-up time.
- Energy efficient: lower consumption than traditional magnetron radars.
- Future-proof: expandable with sonar, autopilot, and additional MFDs.
Technical specifications
| Package contents | NSS12 evo3S MFD + HALO20+ pulse compression radar |
|---|---|
| Screen size | 12-inch SolarMAX IPS multi-touch |
| Radar type | Pulse compression solid state with Doppler |
| Radar range | 6 meters to 36 nautical miles |
| Network | Ethernet, NMEA 2000, Wi-Fi, Bluetooth |

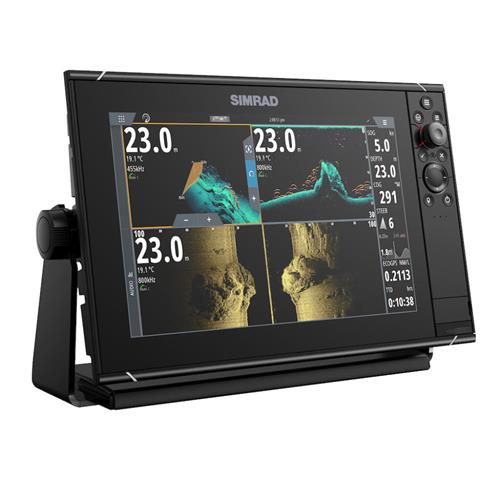

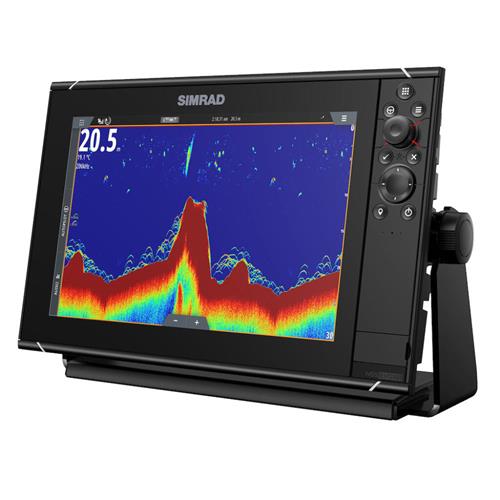

| Sonar | CHIRP, DownScan, ForwardScan, StructureScan HD |
| Power supply | 12 V to 24 V DC |
| Chart compatibility | C-MAP, Navionics, Insight basemap |
Additional features
- VelocityTrack: Doppler speed detection of targets.
- Bird Mode: radar settings for bird flock visibility.
- MARPA targeting: automatic tracking of multiple targets.

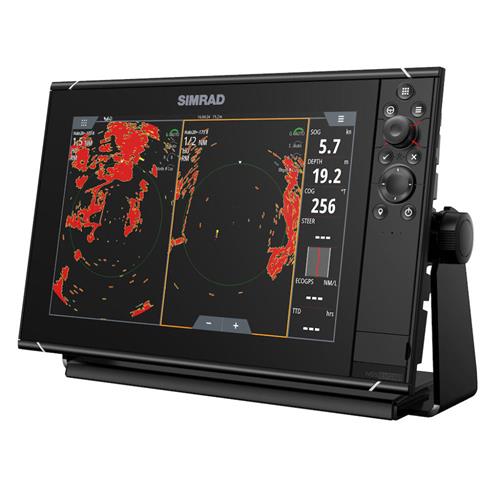

- Dual Range: display two ranges simultaneously.
- AIS overlay: radar echoes combined with AIS targets.
- Autopilot integration: control of Simrad NAC autopilots.
- App integration: control and monitor via Simrad app.
