Actisense NGX-1-USB – Gateway
Actisense NGX-1-USB – Gateway
SKU:NGX-1-USB
Regular price
€230,09 EUR
Regular price
€287,61 EUR
Sale price
€230,09 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
✅ Snelle levering✅ Gecertificeerd B&G specialist
✅ 2 jaar fabrieksgarantie
✅ Deskundig advies en ondersteuning
Couldn't load pickup availability

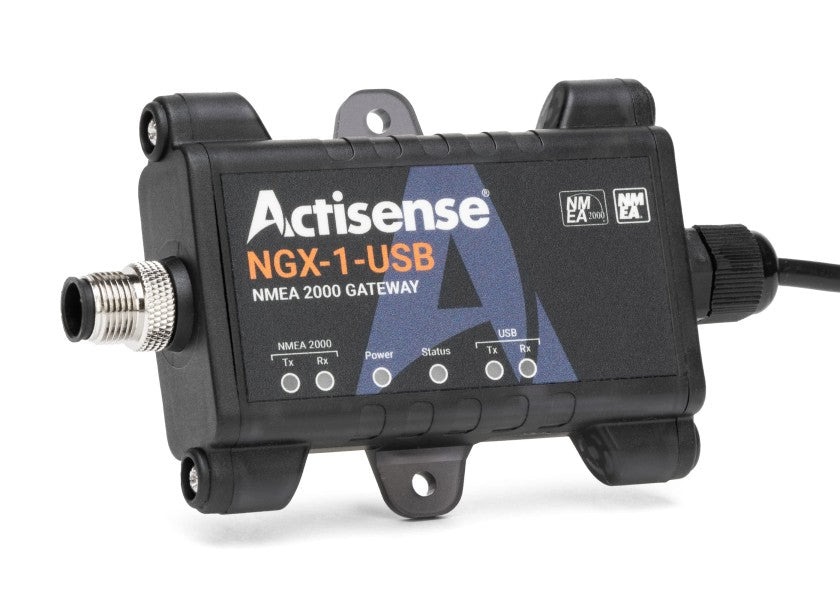

Actisense NGX-1-USB, Dual Gateway & PC Interface NMEA 2000
The Actisense NGX-1-USB combines a powerful gateway with a PC interface. It converts NMEA 2000 data to USB and provides bidirectional conversion between NMEA 0183 and NMEA 2000. Galvanic isolation keeps your network secure and interference-free.
Who is this system made for?
- For those who want a USB connection to a PC for monitoring, logging or configuration.
- For those who want to integrate NMEA 0183 equipment with an NMEA 2000 network.
- For installations that require safety, compatibility and flexibility.
Key Features
- Bidirectional conversion NMEA 0183 ↔ NMEA 2000
- USB interface with galvanic isolation to prevent ground loops
- Support up to 230 400 baud
- Advanced sentence routing (configurable Tx/Rx lists)
- LED indicators for status and data streams
- IP67 housing, rugged for marine environments
What's in it for you?
- Plug & play with PC: direct connection via USB.
- Secure network: isolation prevents interference or malfunction.
- Flexible integration: combine old and new instruments in one network.
- Insight & Control: Configuration and diagnosis via Actisense Toolkit.
Technical specifications
Power & NMEA 2000
| Supply voltage | 9–30 V DC via NMEA 2000 bus |
|---|---|
| Power consumption | ≈ 62 mA at 9 V DC |

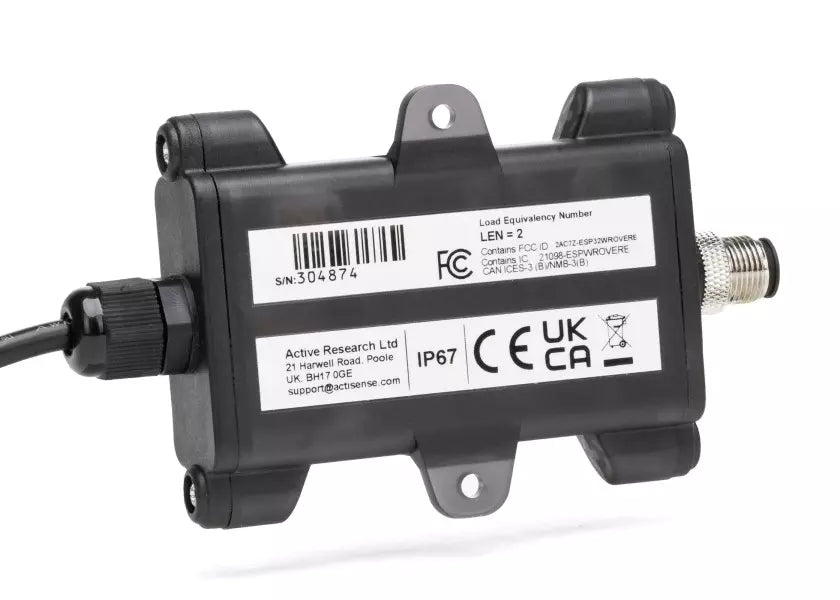

| LEN | 2 |
| Bus speed | 250 kbps (NMEA 2000 standard) |
USB side
| Connector type | USB type A plug (molded cable) |
|---|---|
| Insulation | Galvanic isolation between PC and NMEA 2000 |
| Baud rates | 4800 to 230 400 |
| Power via USB | ≤ 10 mA at 5 V DC (for USB variant) |
NMEA 0183 & conversion
| Bi-conversion | Supports both directions: NMEA 0183 ↔ NMEA 2000 |
|---|---|
| Routing | Adjustable Tx/Rx lists for conversion |
| Filtering | Message filter options to prevent overload |
Mechanical & environmental
| Housing | IP67 rated, rugged design for marine use |
|---|---|
| Dimensions & Weight | Compact and light (comparable to ISO version) |
| Temperature range | –25 °C to +70 °C operating temperature |
| Standards & certification | Complies with NMEA 2000 certification & relevant EMC standards |
Additional features
Diagnosis & management
| LED indicators | Status LEDs for power, data in/out |
|---|---|
| Configuration | Via Actisense Toolkit (Windows) |
| Firmware updates | Supported via USB and Toolkit |
