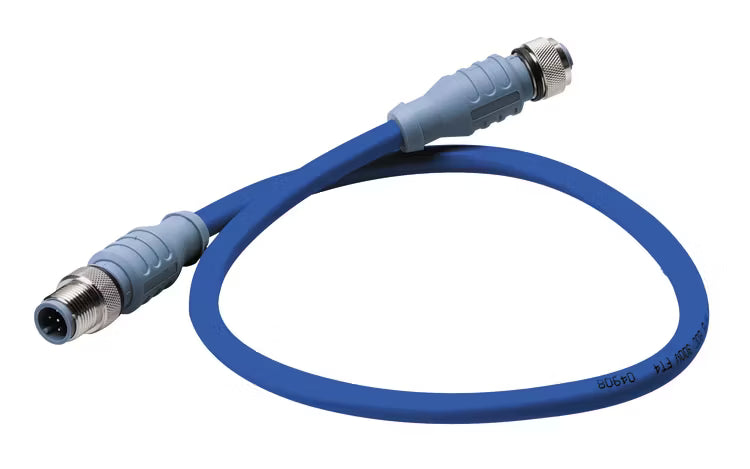

Maretron DM-DB1-DF-00.5 NMEA 2000 Mid cable 0.5 m male to female blue
Maretron DM-DB1-DF-00.5 NMEA 2000 Mid cable 0.5 m male to female blue
SKU:DM-DB1-DF-00.5
Regular price
€30,49 EUR
Regular price
€36,30 EUR
Sale price
€30,49 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
✅ Fast delivery
✅ Authorized dealer and marine specialist
✅ 2 year manufacturer warranty
✅ Not sure what fits? Contact us for advice
✅ Authorized dealer and marine specialist
✅ 2 year manufacturer warranty
✅ Not sure what fits? Contact us for advice
Couldn't load pickup availability
Maretron DM-DB1-DF-00.5 NMEA 2000 Mid cable 0.5 m male to female blue
The Maretron DM-DB1-DF-00.5 is a robust 0.5-meter NMEA 2000 Mid-range network cable with a male-to-female connector in blue, designed for a reliable connection within your ship or maritime data network. This cable easily connects between backbone and drop points without additional adapters.
Who is this product made for?
- Installers of maritime communication networks
- Boat owners and technicians who want to extend an NMEA 2000 backbone
- Anyone looking for a sturdy Mid cable with waterproof connectors
Key Features
- Mid Double-Ended cordset with male to female connection
- Cable length 0.5 meters, blue
- Rugged, waterproof connectors with NMEA 2000 certification
- Suitable for use in wet maritime environments
What's in it for you?
- Easy integration: Connect backbone and drop segments without additional adapters.
- Reliable connectivity: Connectors are designed for long-term contact in marine conditions.
- Smart length: 0.5 meters ideal for short connections in your network design.
Technical specifications
General
| SKU | DM-DB1-DF-00.5 |
|---|---|
| Product type | Mid Double-Ended Cordset Cable |
| Connections | Male to female connector |
| Cable length | 0.5 meters |
| Cable color | Blue |
| Protection class | IEC IP68, NEMA 1,3,4,6P |
| Temperature range | -40 °C to 80 °C |
| Approvals | NMEA 2000 Approved, IEC 61162-3 |
Additional features
Cable and connector details
| Contact material | Brass with gold plating |
|---|---|
| Clutch | Brass with nickel plating |
| Cable sheathing | PVC |
| Conductors | 2×16 AWG & 2×20 AWG plus drain |
| Shielding | Three layers of foil shielding |
