Maretron CO-CO1224T carbon monoxide detector
Maretron CO-CO1224T carbon monoxide detector
SKU:CO-CO1224T
Regular price
€198,20 EUR
Regular price
€235,95 EUR
Sale price
€198,20 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
✅ Fast delivery
✅ Authorized dealer and marine specialist
✅ 2 year manufacturer warranty
✅ Not sure what fits? Contact us for advice
✅ Authorized dealer and marine specialist
✅ 2 year manufacturer warranty
✅ Not sure what fits? Contact us for advice
Couldn't load pickup availability

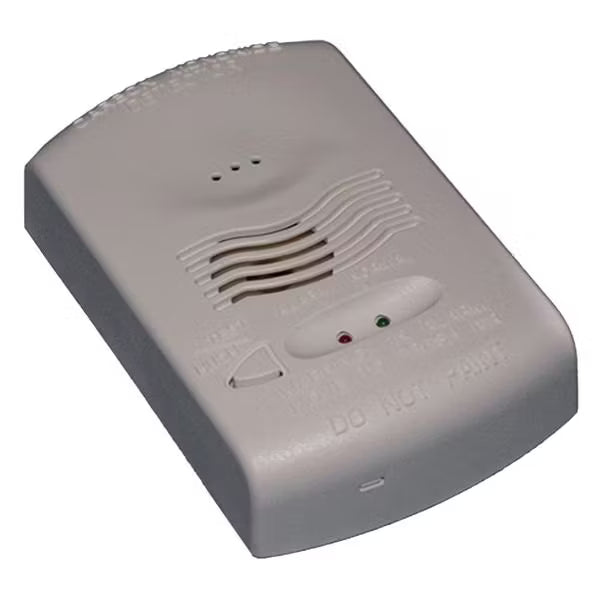

Maretron CO-CO1224T carbon monoxide detector
The Maretron CO-CO1224T is a carbon monoxide detector for monitoring CO in indoor spaces. This detector connects to a Maretron SIM100 so its status can be displayed via the NMEA 2000 network. The detector's power supply is 10 to 33 VDC and, according to the installation instructions, should be disconnected from the NMEA 2000 power supply.
Who is this product made for?
- Installers who want to integrate CO monitoring into a Maretron SIM100 installation
- Technicians who want to read a carbon monoxide detector via an NMEA 2000 network with SIM100
- Professionals who want to visualize the status of CO detection on compatible Maretron displays and software
Key Features
- Carbon monoxide detector with connection to SIM100 via a free switching input
- Power supply 10 to 33 VDC, independent of the NMEA 2000 mains supply
- Supplied with pre-assembled terminating resistor and jumper for correct operation according to installation instructions
What's in it for you?
- Network visibility , detector status is available via SIM100 on the NMEA 2000 network
- Robust installation , clear connection steps for power and signal to a SIM100 channel
- Fault recognition according to instructions , checking for normal condition, alarm and fault status via the SIM100 channel display
Technical specifications
General
| SKU | CO-CO1224T |
|---|---|
| Product type | Carbon monoxide detector |
| Supply voltage | 10 to 33 VDC |
| Connection | Two signal wires to a free SIM100 switching channel |
| Network integration | Connection to NMEA 2000 via Maretron SIM100 |
Additional features
Installation and inspection
| SIM100 channel mode | The channel used is set to End of Line Resistor |
|---|---|
| For mounted parts | The detector is supplied with an 8 kΩ termination resistor and a jumper which, according to the instructions, should not be removed. |
| Verification | Check normal condition, alarm during test and error status when voltage is lost or signal wire is disconnected |
